Record Grid Widget (EX)

What's on This Page:

Was this helpful?

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

The feedback you submit here is used only to help improve this page.

That’s great! Thank you for your feedback!

Thank you for your feedback!

Qtip: This page describes functionality available to Engagement and Lifecycle projects. For more details on each, see Types of Employee Experience Projects.

About Record Grid Widgets

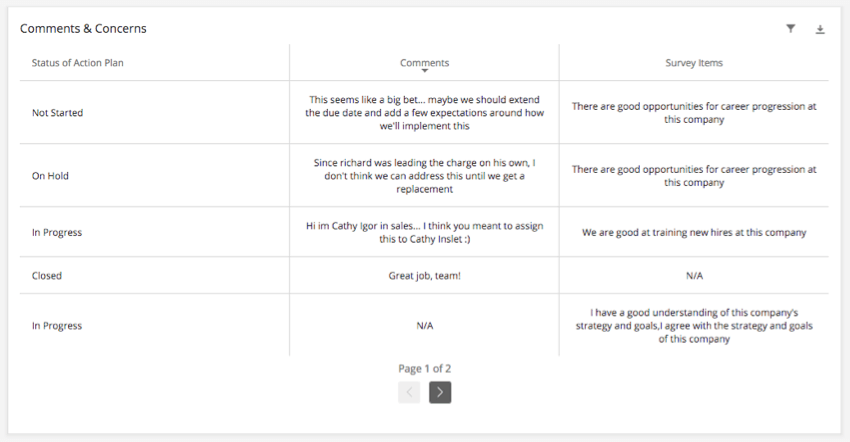

The record grid widget displays data from action plans in a table. You can set columns to display the owner, due date, status, and more, making it easy to glean insight on the progress of action plans. Exporting this widget is the one of the best ways to get action plan statuses and share them with key stakeholders.
Record Grid widget

Attention: Lifecycle has action planning, but no hierarchies or hierarchy-based data restrictions. That means that when reporting on action plans in a Lifecycle project, this data is not restricted by place in the hierarchy, and so every user with access to action planning will see this data. As such, be careful who you give access to action planning.


The record grid widget is compatible with all action planning fields. All these fields will be available when selecting Columns for the record grid widget.

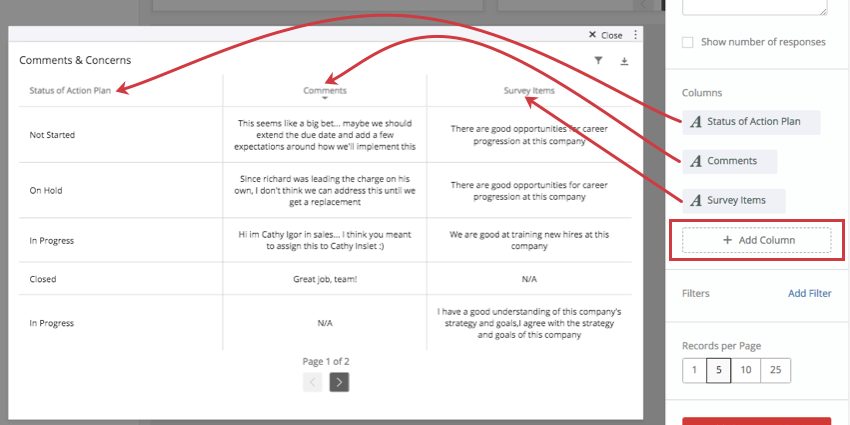

See in the image below how names of selected columns added to the editing pane correspond to column names on the widget.

Columns button in editing pane to right. Arrows show selected columns correspond to column headers

Widget Customization

Records per Page

By default, 10 records (responses) will display per page on the record grid widget. This can be changed to 1, 5, or 25 in this section.

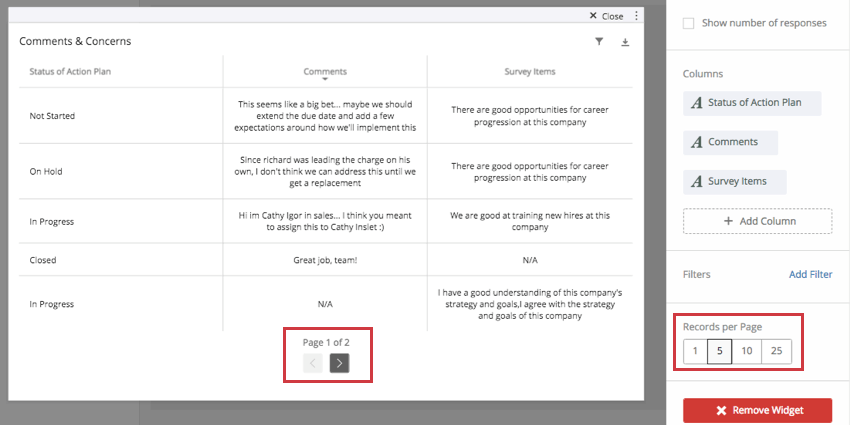

Records per Page section in righthand editing pane
