About the Split Axis Chart Widget

The split axis chart widget can be used in any brand tracker dashboard to compare two different metrics. This widget stacks the y-axis of a line chart on top of the y-axis of a bar chart.

Picture of the widget. It looks like a line graph stacked on top of a bar graph
Picture of the widget. It looks like a line graph stacked on top of a bar graph

Field Compatibility

The x-axis of a split axis chart widget is only compatible with the following field types:

  • Date
  • Number Set
  • Multi-Answer Text Set

You can also add two metrics to the spit-axis chart. When calculating any metric other than count, you need a Numeric Value or Number set field.

Basic Setup

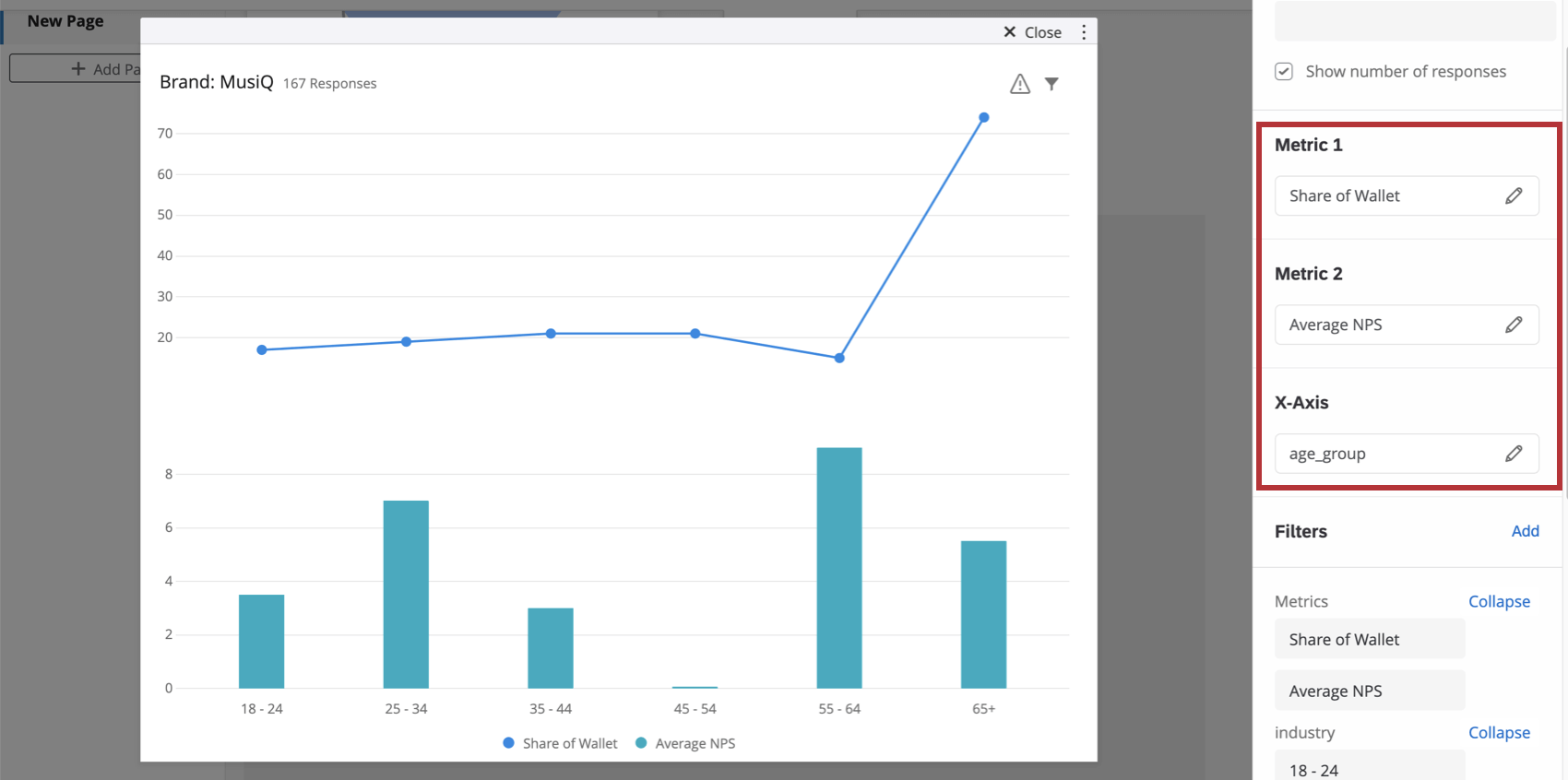

Metric and axis settings in the widget editing pane for the split axis chart
Metric and axis settings in the widget editing pane for the split axis chart
Add a split axis chart widget to any brand tracker dashboard.
Add the first metric.
Qtip: This can be anything you like – for example, NPS, a satisfaction rating, or even a custom metric.
Qtip: For help configuring a metric, see the Widget Metrics support page.
Add a second metric. This is generally a field you want to compare to the first metric you added.
Choose an x-axis field. This is how the two metrics selected will be broken out.
Example: Often this is a demographic field or a date (so you can see change over time).

Widget Customization

For basic widget instructions and customization, visit the Building Widgets support page. Continue reading for widget-specific customization.

Display Options

  • Show X axis: Display or hide the x-axis labels.
  • Show Y axis: Display or hide the y-axis labels.
  • Show data values: Display the value over every data point / bar in the chart.
  • Show horizontal grid lines: Display or hide the horizontal lines on the chart.

Legend Options

You can modify the wording on axis and legend labels using the list of fields in the widget editing pane.

Qtip: Expanding and collapsing the list only affects what’s displayed in the editing pane, not the widget itself.

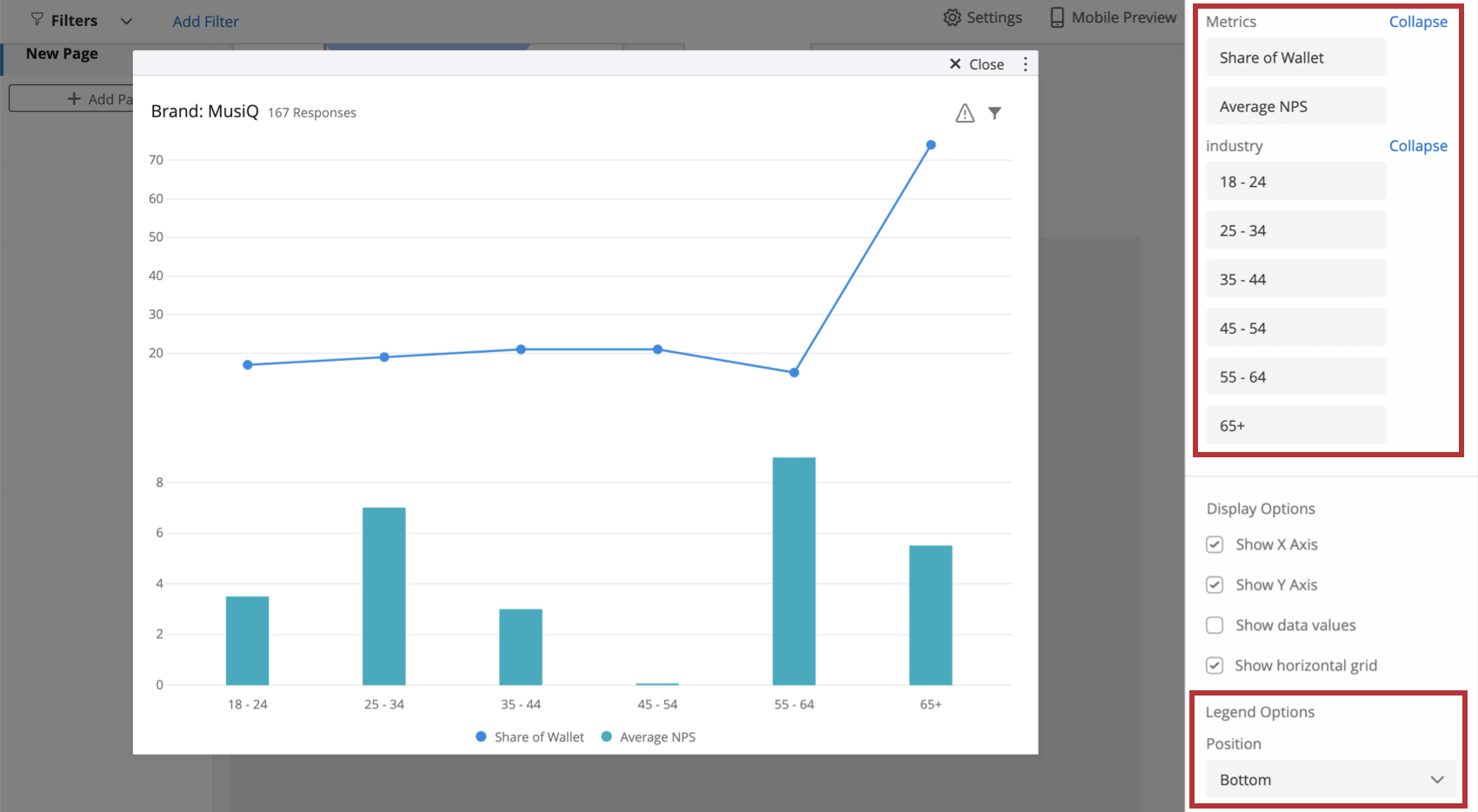

List of metrics; then, at the bottom of the editing pane, the legend options
List of metrics; then, at the bottom of the editing pane, the legend options

You can also configure whether you’d prefer the legend position to be at the bottom of the chart (pictured) or to the right.

Additional Options

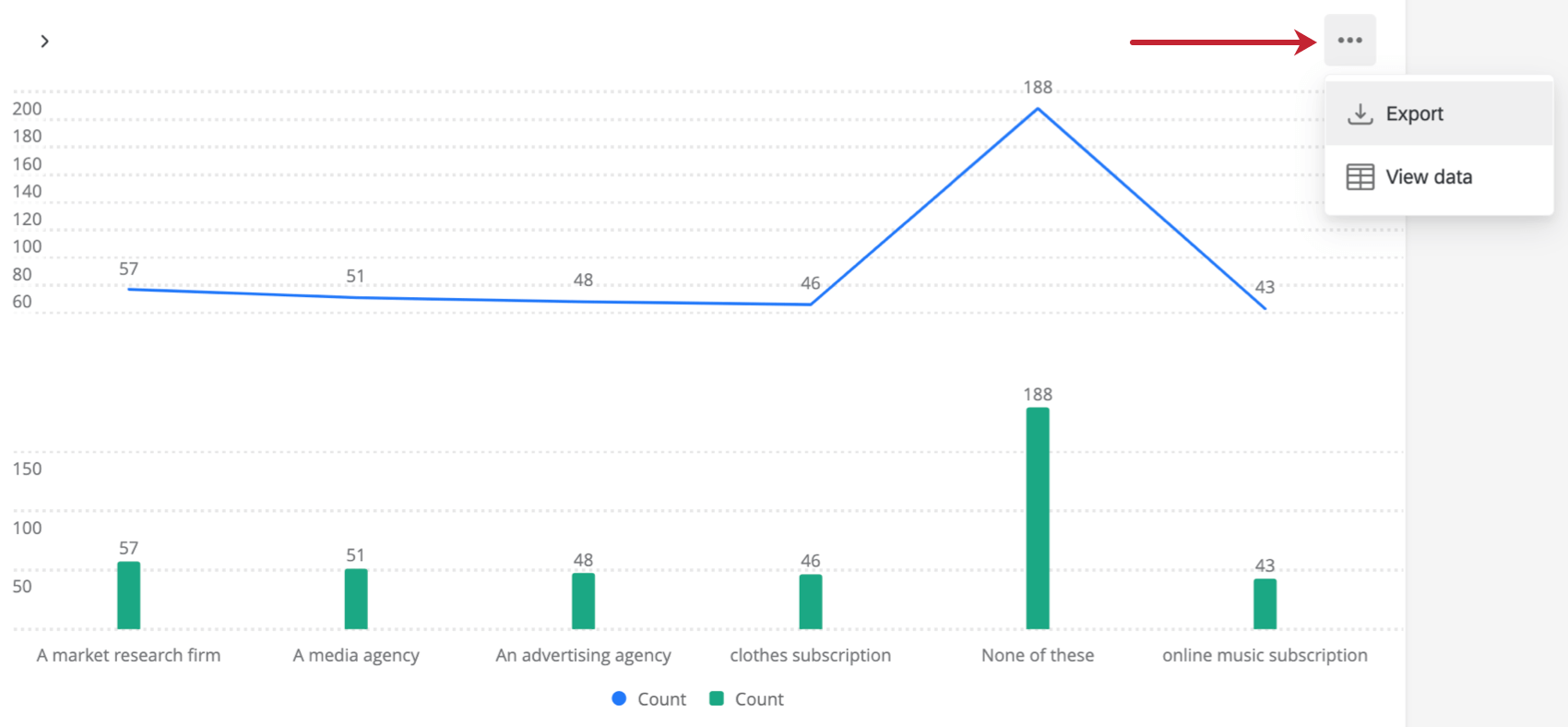

Click on the three horizontal dots in the top-right corner of your widget to view additional options.

additional options for the Split Axis Chart Widget
additional options for the Split Axis Chart Widget
  • Export: Export your widget as a JPG, PDF, CSV, or TSV.
  • View data: View a table containing the data for all metrics in the widget.
