About Integrating with Amazon Connect

Integrating with Amazon Connect allows you to bring your customer interaction data from Amazon into Qualtrics. This data can then be used in Qualtrics workflows or analyzed using any Qualtrics analysis method, including Text iQ in a CX dashboard.

Attention: Custom coding features are provided as-is and require programming knowledge to implement. Qualtrics Support does not offer assistance or consultation on custom coding. You can always try asking our community of dedicated users instead. If you’d like to know more about our custom coding services, please contact your Qualtrics Account Executive.

Setting up the Integration

This section covers the initial steps for setting up the integration between Qualtrics and Amazon Connect. Once these steps are complete, follow the steps in Using Amazon Connect Customer Profiles to finish setting up the integration using customer profiles. If you store your customer data in another CRM instead of using Amazon customer profiles, complete the steps in Looking Up Customer Data After a Call instead.

Create a new workflow in Qualtrics started by a JSON event.
Click Copy URL in the pop-up window to copy the endpoint.

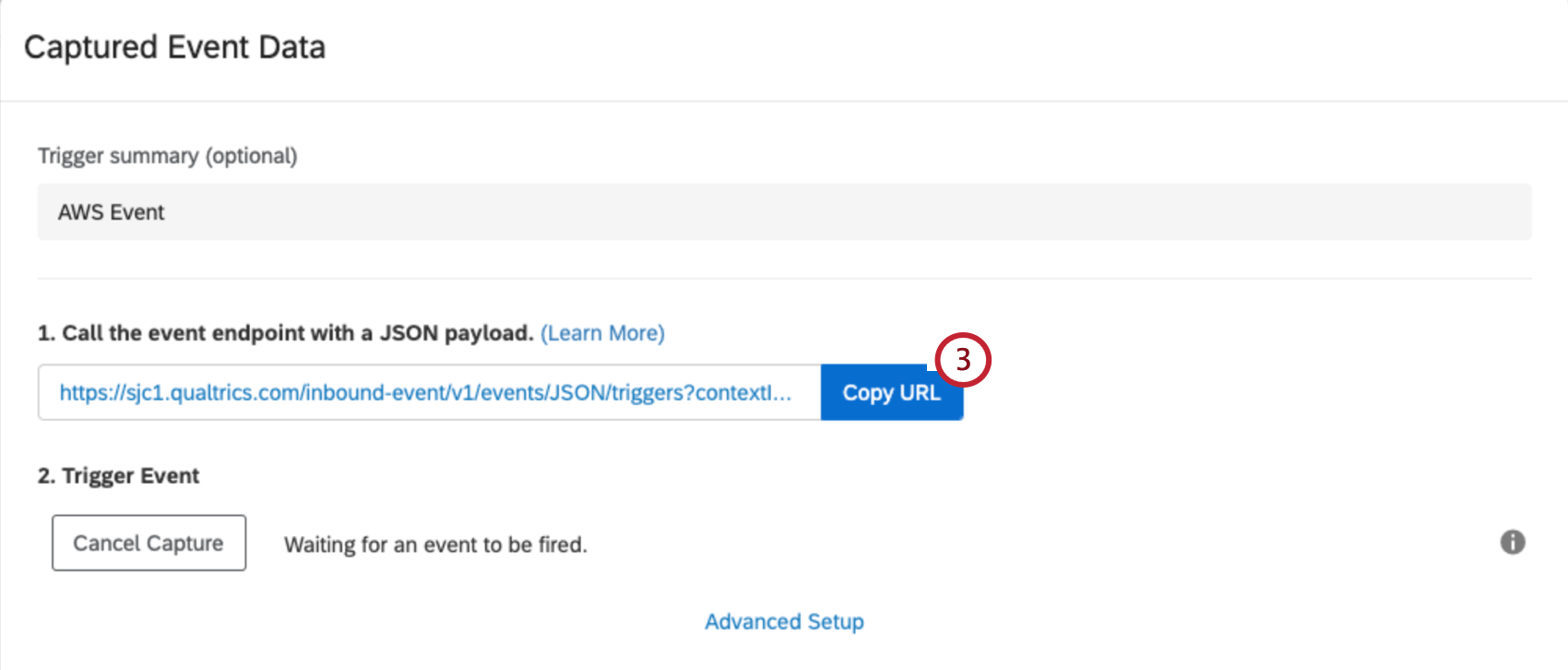

"copy URL" button within the task
"copy URL" button within the task
Attention: Do not close this window while you complete the remaining steps in AWS.
Generate a Qualtrics API token for use in AWS.
Create a new secret in AWS Secrets Manager that will use your Qualtrics API token.

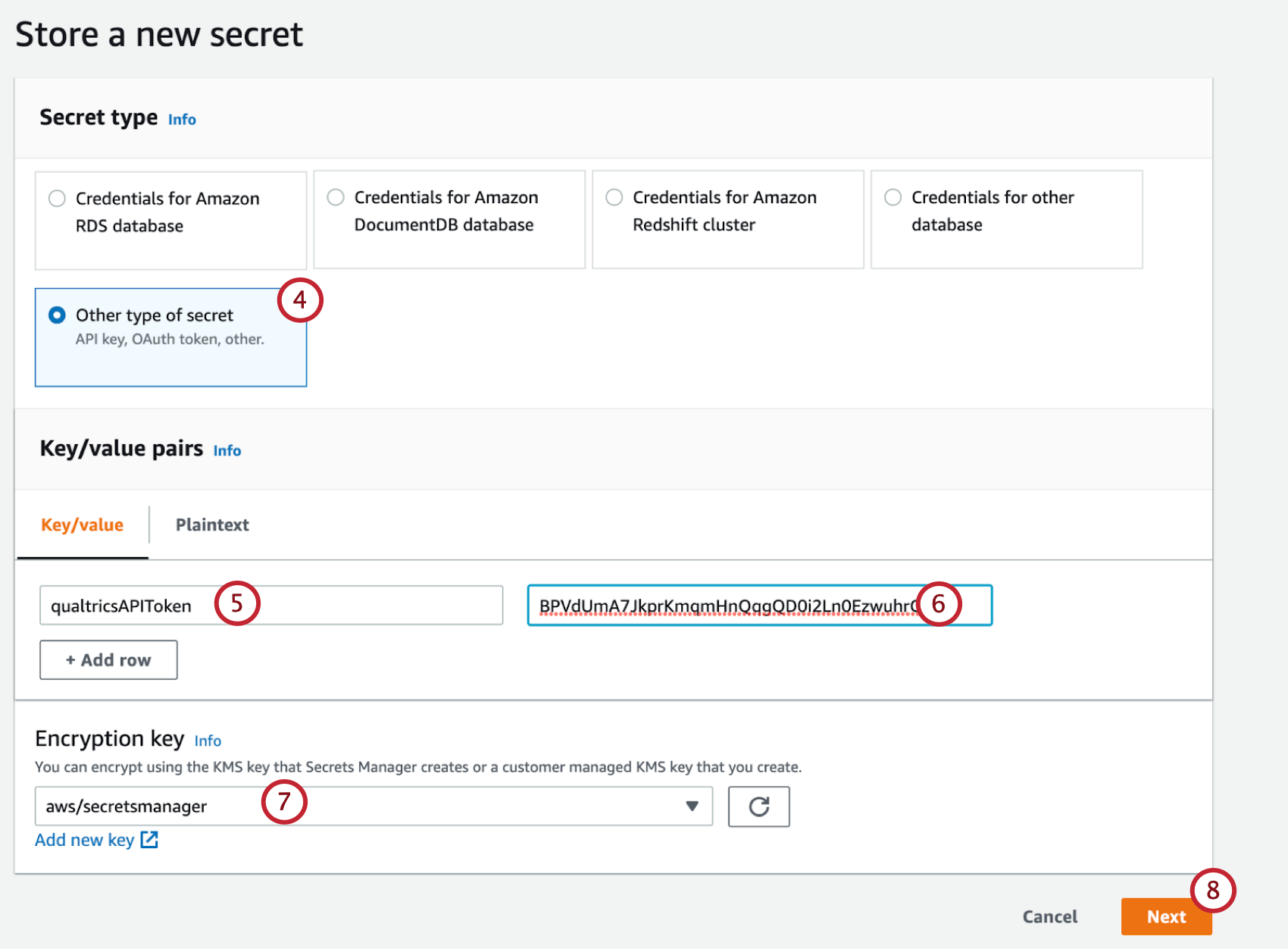

configuring a secret in AWS
configuring a secret in AWS
Type qualtricsAPIToken in the key field within a new key/value pair.
Paste your API token from step 3 in the value field.
Select aws/secretsmanager as the Encryption key.
Click Next.
Upload the example AWS Lambda function. If you are using Amazon Connect customer profiles, use this example function.
Add the following environmental variable keys QUALTRICS_API_TOKEN_ARN and QUALTRICS_API_TOKEN_KEY. Values can be found in the AWS secrets manager.

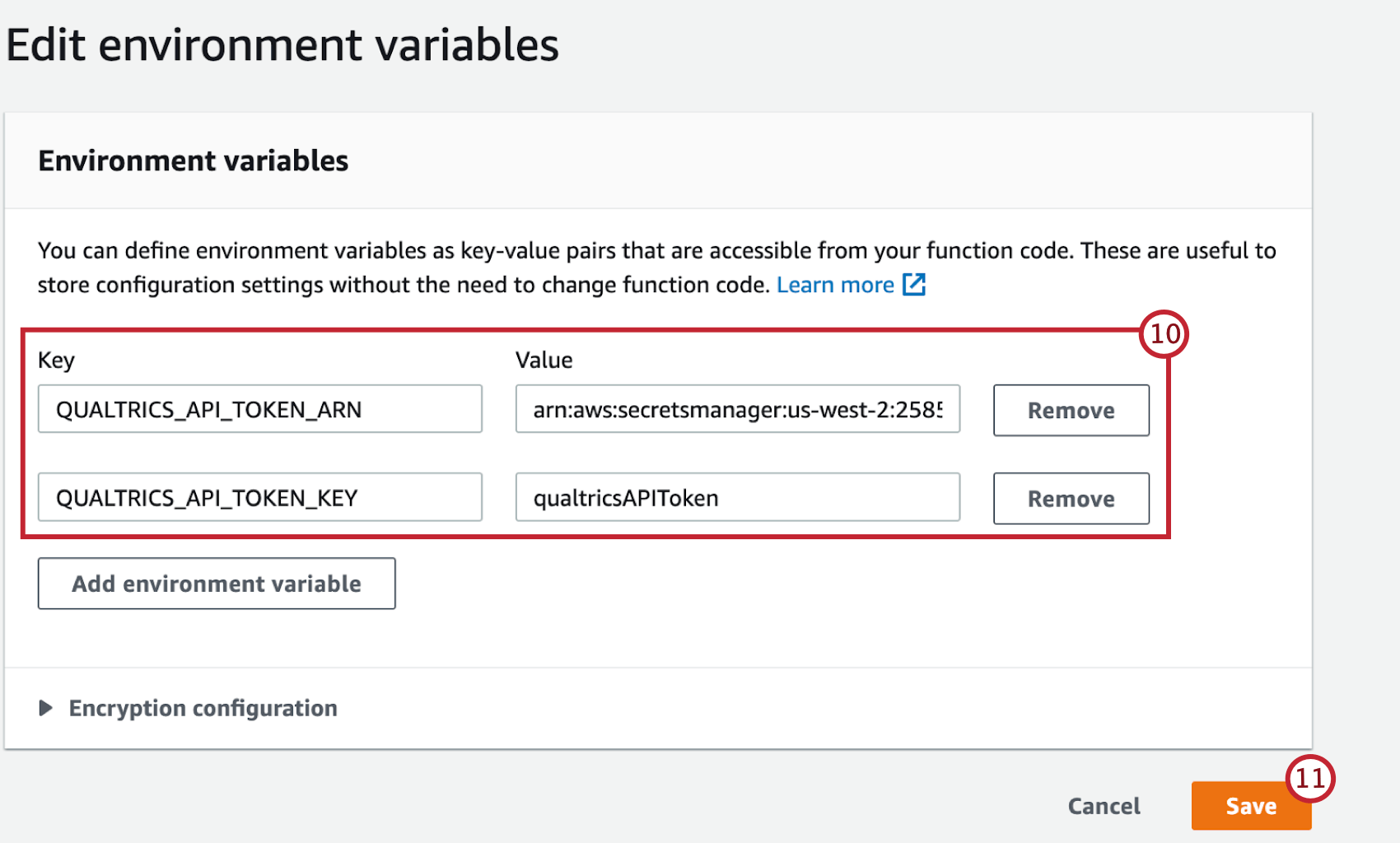

environmental variable configuration window
environmental variable configuration window
Click Save.
Add your Lambda function to your Amazon Connect instance. See Amazon’s documentation for instructions.

Using Amazon Connect Customer Profiles

To integrate with Amazon Connect using customer profiles and voice interactions, you must have customer profiles set up with email and phone number. See Amazon’s documentation for more information.

To integrate with Amazon Connect using customer profiles and chat interactions, you must be collecting customer email in your chat widget and passing it as an attribute. See Amazon’s documentation for instructions.

Add a Customer profiles block to your Amazon Connect contact flow.
Attention: If an agent is working with a new customer, they have to create a customer profile before the flow reaches the customer profile block.

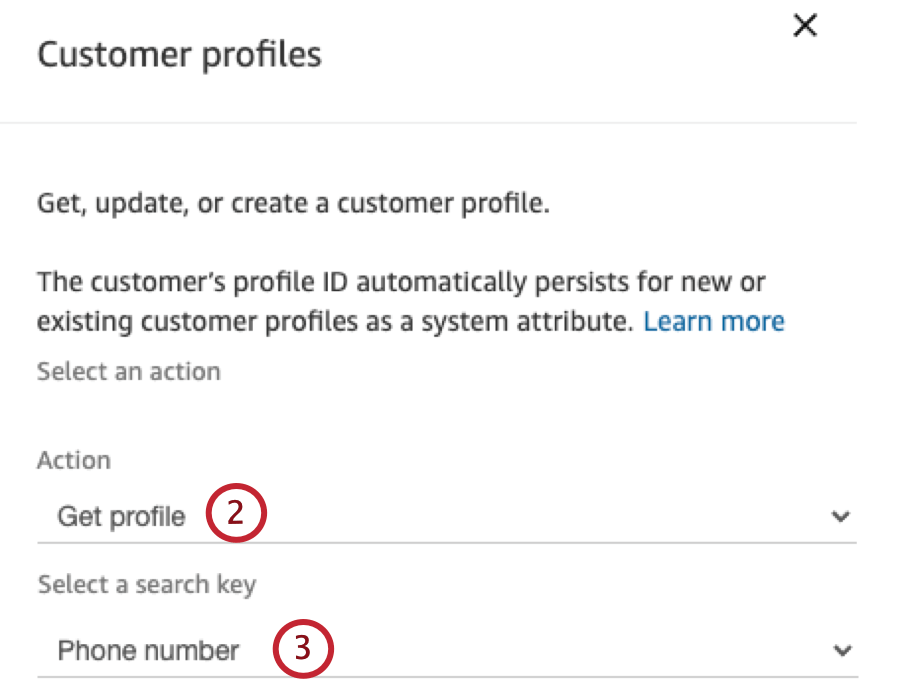

Under Action, select Get profile.
customer profile configuration window
customer profile configuration window
Select a search key:
  • Voice only: Select Phone number.
  • Chat only: Select

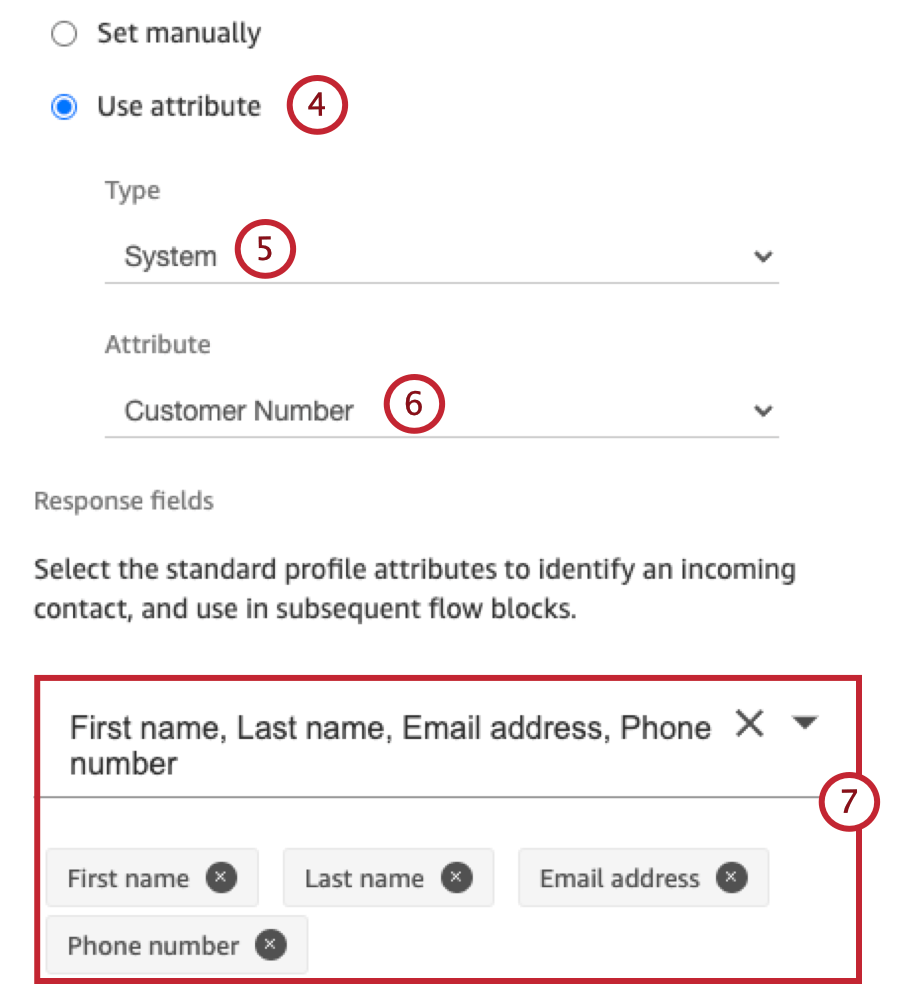

Select Use attribute.
configuring attributes
configuring attributes

Select the attribute Type:
  • Voice only: System
  • Chat only: User Defined
Select the Attribute:
  • Voice only: Customer Number
  • Chat only: The email attribute name being passed from your chat widget.
For Response fields select First name, Last name, Email address, and Phone number.
Add an Invoke AWS Lambda function block at the end of the contact flow.

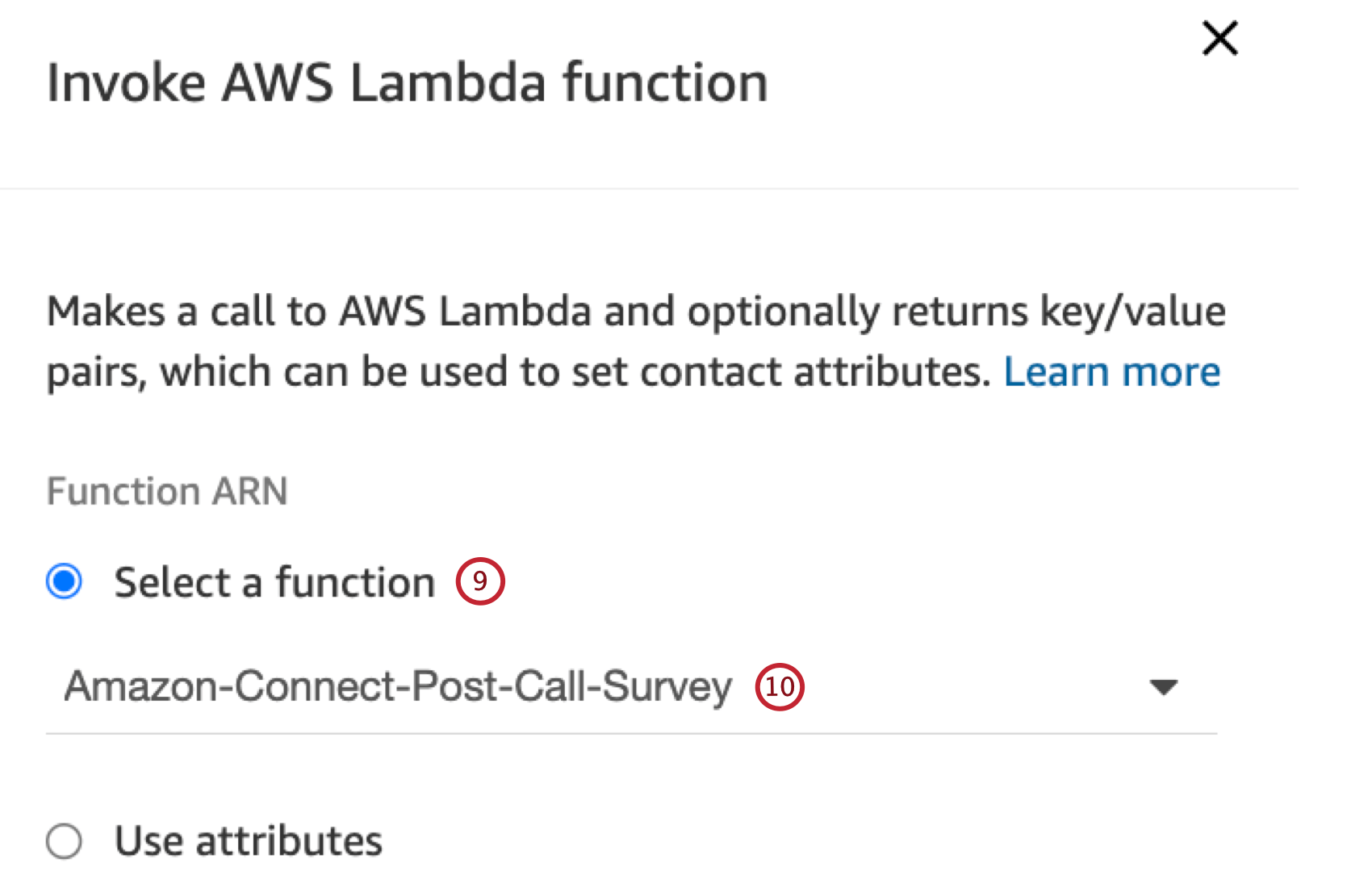

For FunctionARN choose Select a function.
selecting a function
selecting a function

Select the Lambda you created in Setting up the Integration.

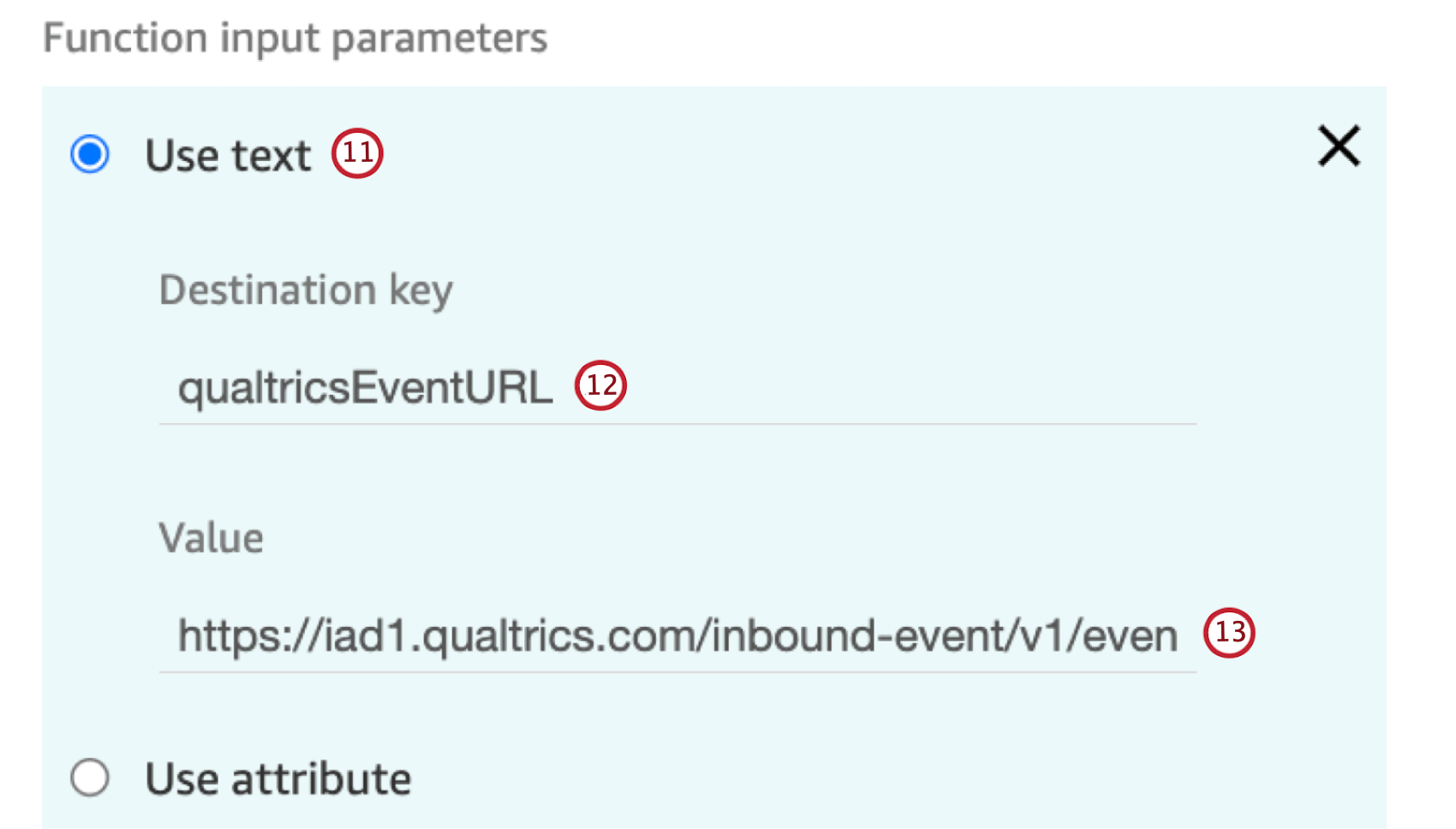

For the first function input parameter select Use text.
function input parameters configuration
function input parameters configuration

Add qualtricsEventURL as the Destination key.
For Value, paste the Qualtrics JSON URL you copied in step 2.
Add an additional input parameter and select Use attribute.

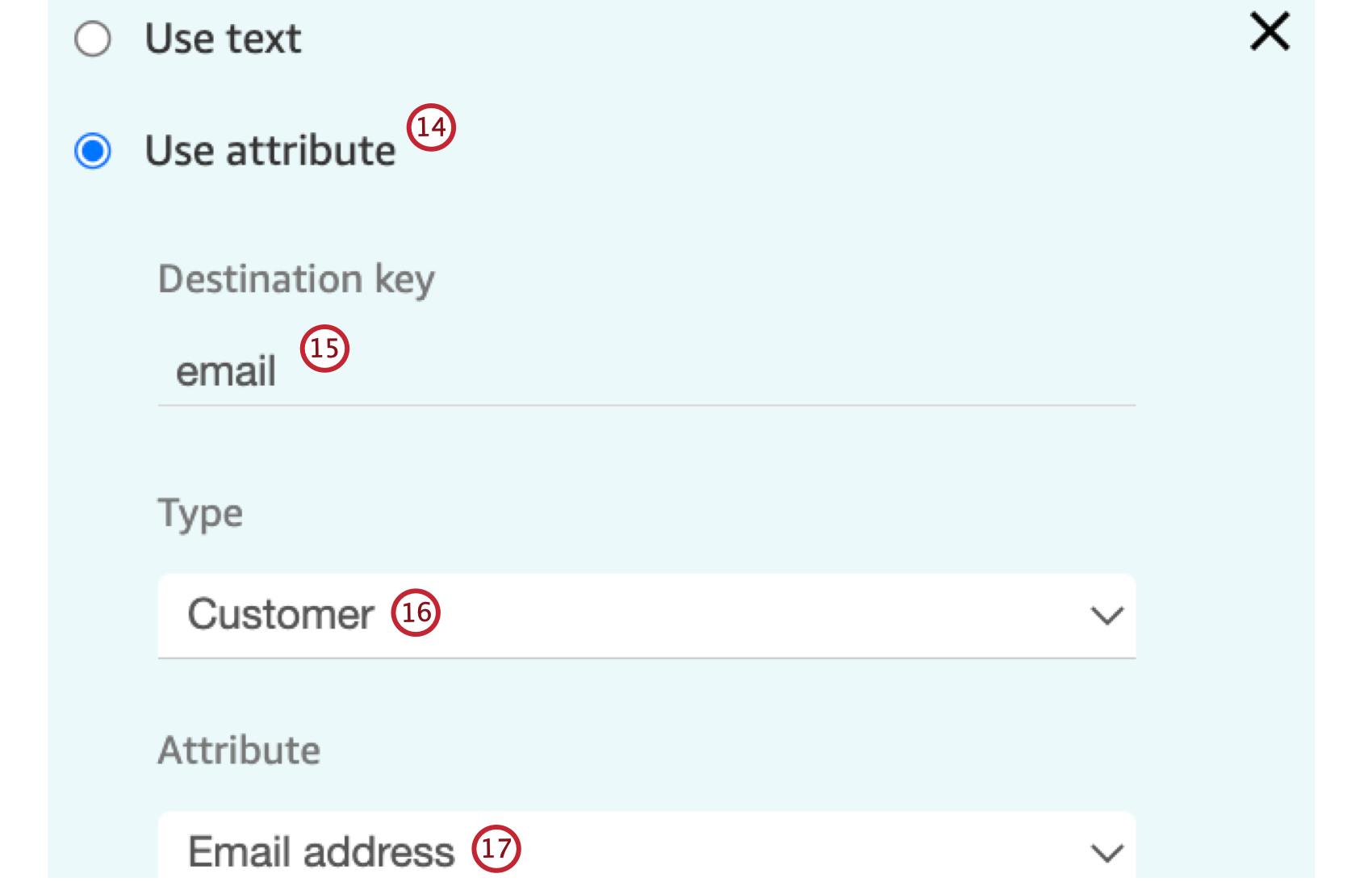

input parameter configuration
input parameter configuration

Enter email as the Destination key.
Select Customer as the Type.
For Attribute select Email address.
Repeat steps 25-28 to create the following input parameters:
Destination Key Type Attribute
phoneNumber Customer Phone number
firstName Customer First name
lastName Customer Last name
Set the Timeout to 8 so Lambda waits 8 seconds before timing out.

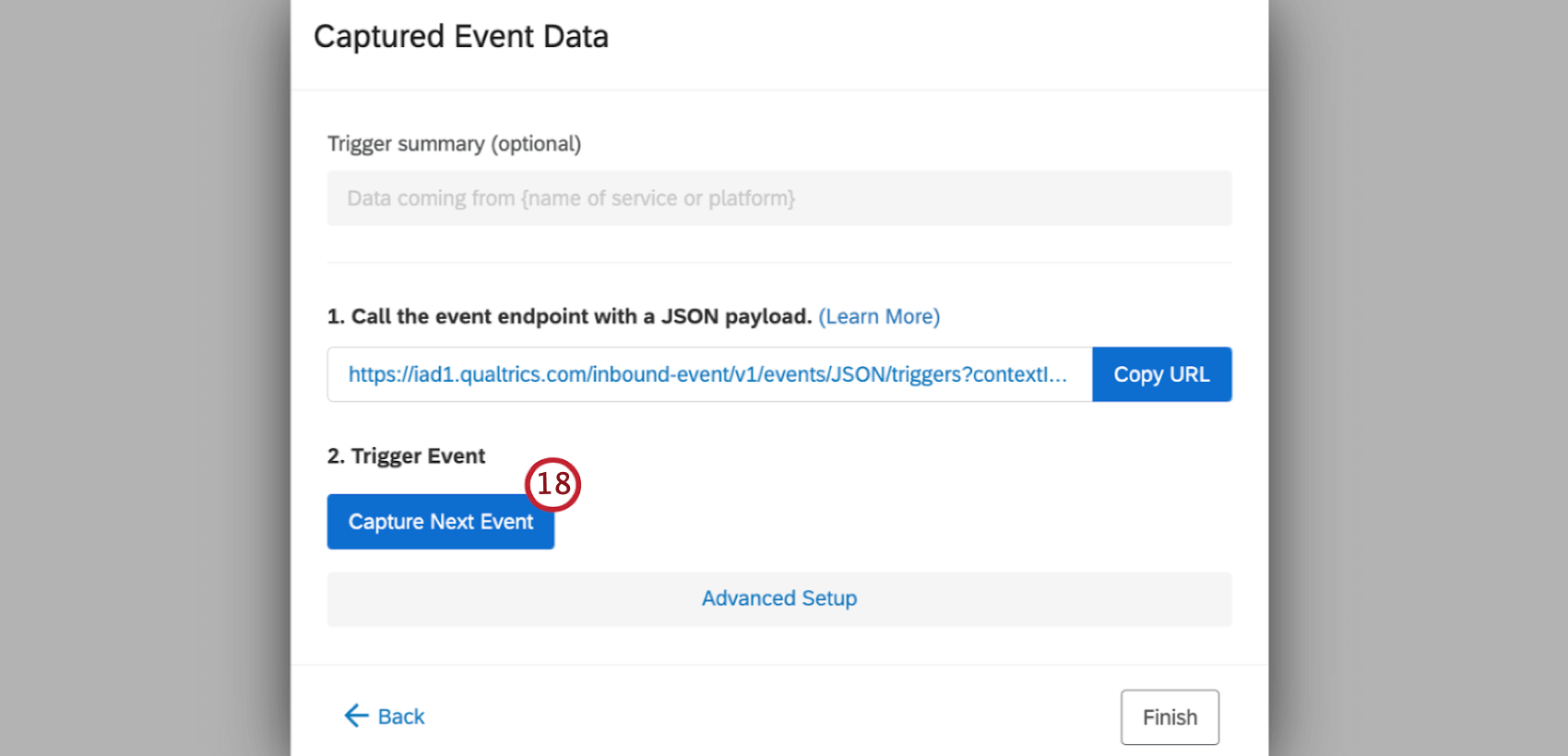

Go back to the JSON event you created in Qualtrics and click Capture Next Event.
"capture next event" button within qualtrics task
"capture next event" button within qualtrics task
Test the contact flow to trigger the event within Amazon Connect.
Confirm the test data is showing up within the Qualtrics event.

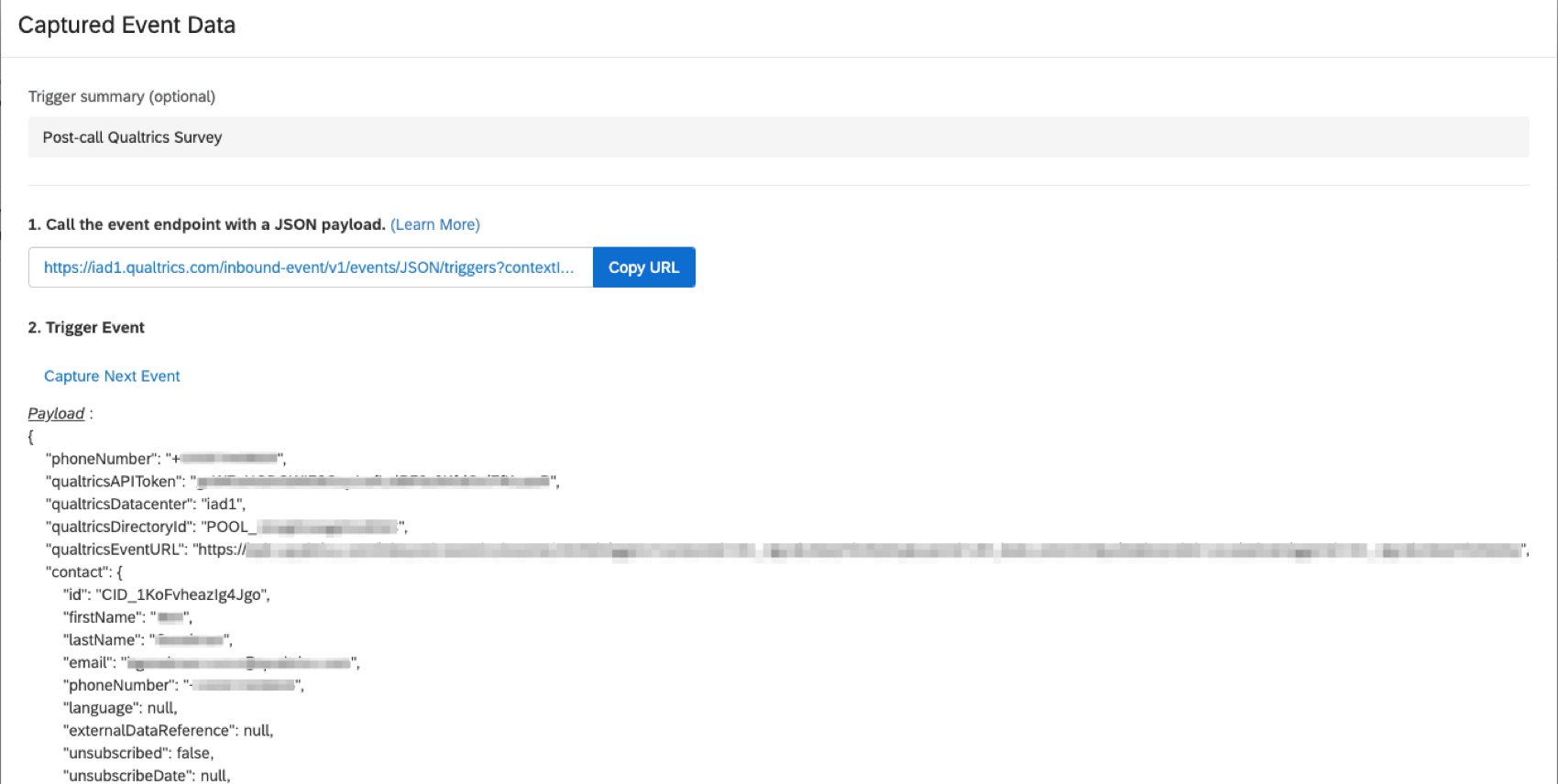

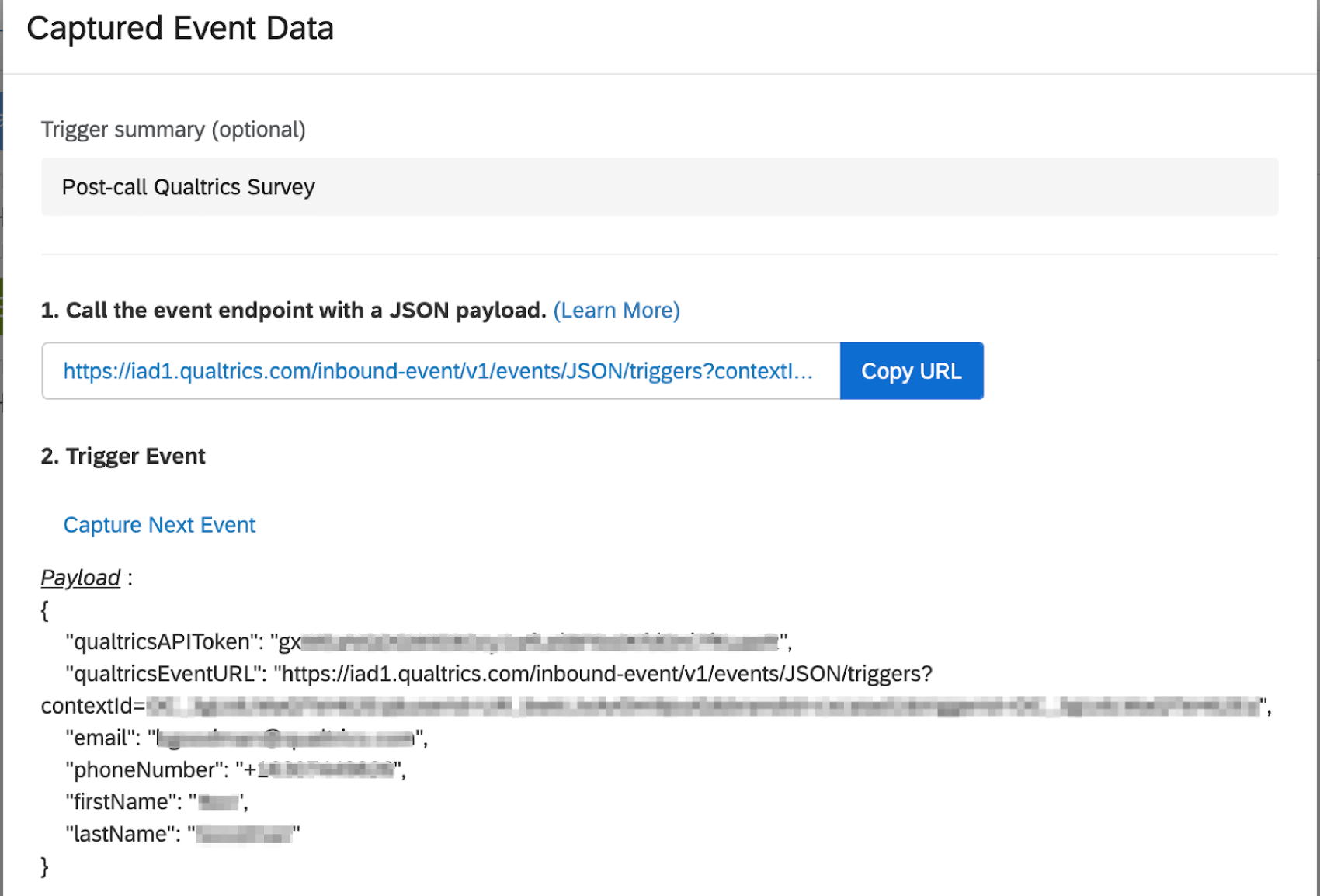

captured event data log within qualtrics
captured event data log within qualtrics

Looking Up Customer Data After a Call

If you store your customer data in another CRM instead of using Amazon customer profiles, you will need to look up your customer data by another field at the end of the call or chat. For chat interactions you must collect customer email within your chat widget and pass it as an attribute. See Amazon’s documentation for instructions.

Attention: If your customer data is not stored within Qualtrics you will need to write lambda code that looks up contact data from your CRM.
Add an Invoke AWS Lambda function block at the end of the contact flow.
Attention: The customer profile must exist in your CRM before you begin this step.
For FunctionARN choose Select a function.
setting up a function
setting up a function
Select the Lambda you created in Setting up the Integration.

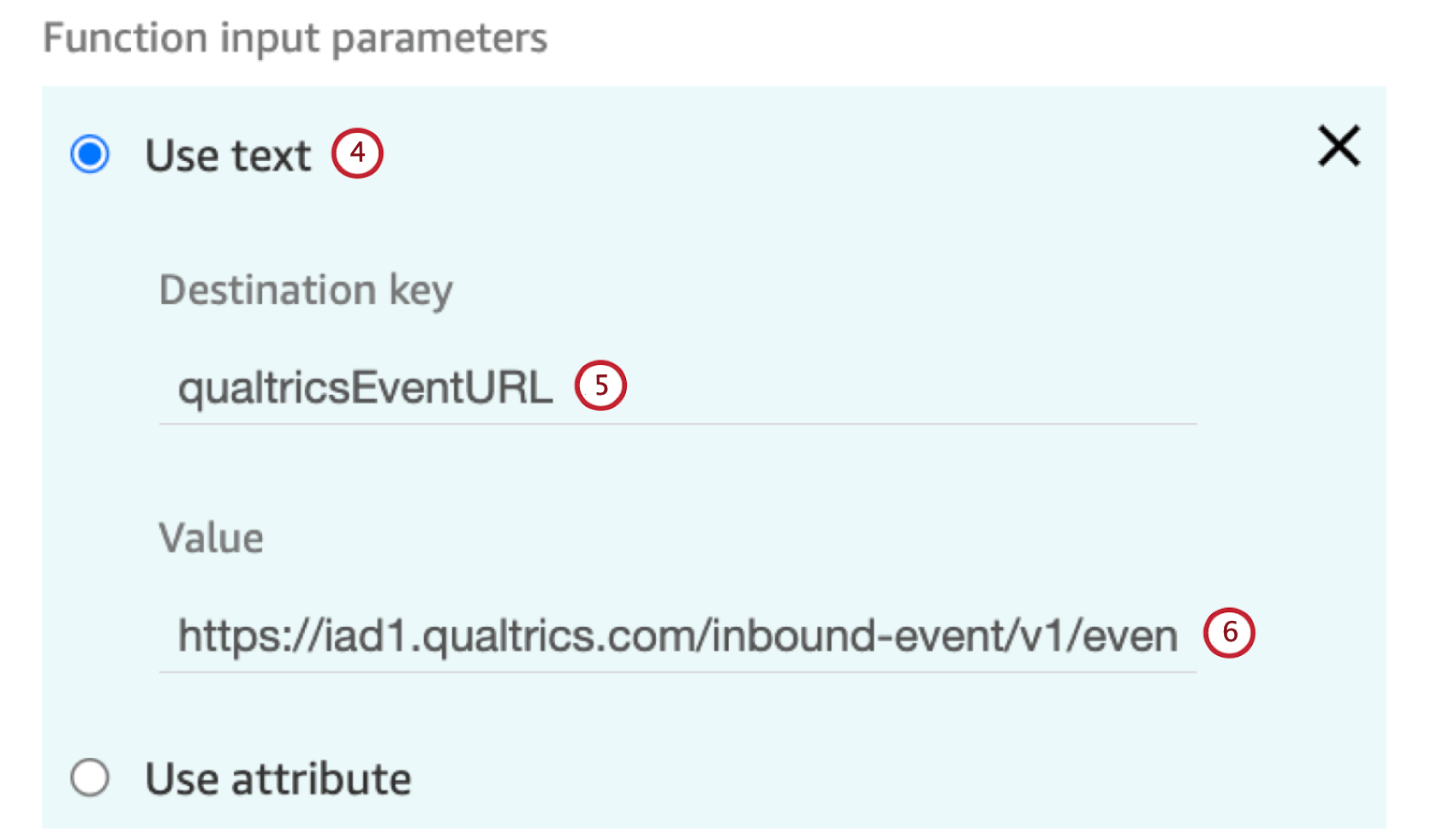

For the first function input parameter select Use text.
configuring function input parameters
configuring function input parameters
Add qualtricsEventURL as the Destination key.
For Value, paste the Qualtrics JSON URL you copied in step 2.
Add an additional parameter and select Use text.

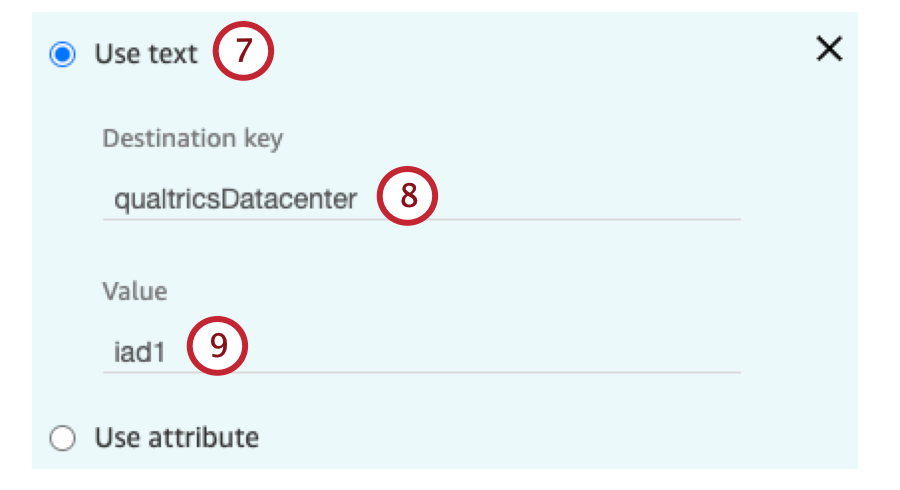

configuring a function parameter
configuring a function parameter
Add qualtricsDatacenter as the Destination key.
For Value, add your Qualtrics Datacenter ID.
Add an additional input parameter and select Use text.

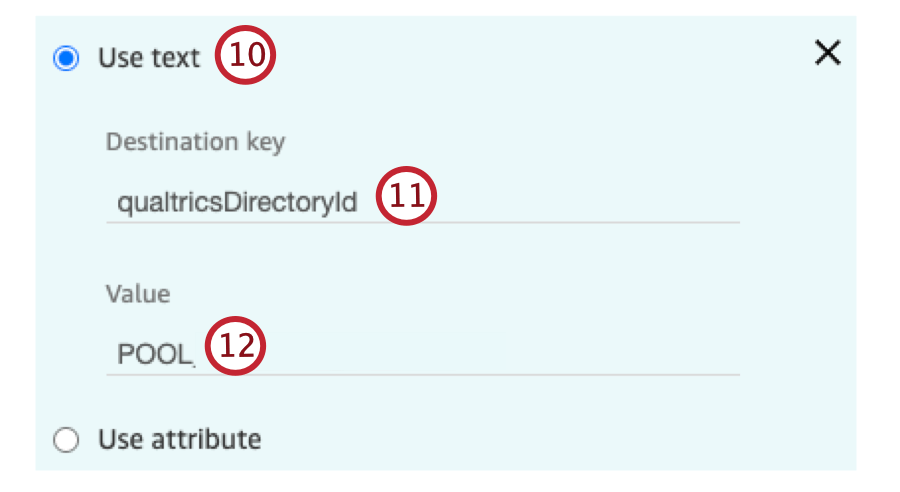

configuring an additional function parameter
configuring an additional function parameter
Add qualtricsDirectoryId as the Destination key.
For Value, add your Qualtrics PoolID.
Add an additional input parameter and select Use attribute.

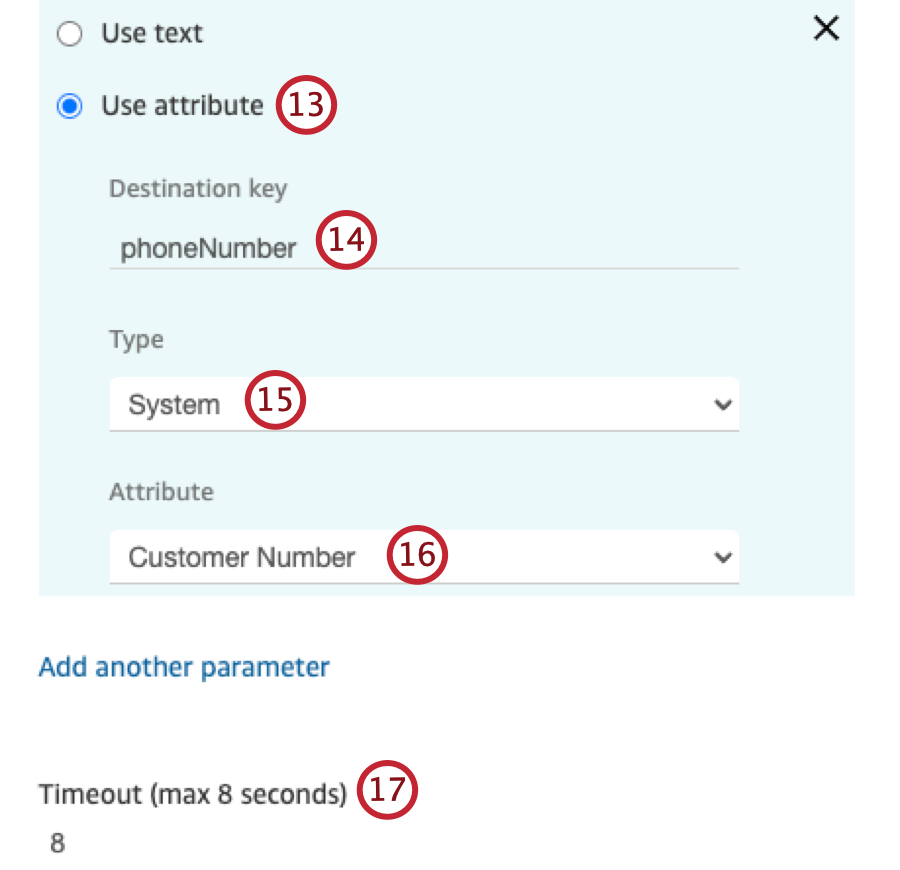

input parameter configuration
input parameter configuration
Enter a Destination key:
  • Voice only: phoneNumber
  • Chat only: email
Select a Type:
  • Voice only: System
  • Chat only: User defined
Select the Attribute:
  • Voice only: Customer Number
  • Chat only: The email attribute name being passed from your chat widget.
Set Timeout to 8.
Go back to the JSON event you created in Qualtrics and click Capture Next Event.
"capture next event" button within Qualtrics task
"capture next event" button within Qualtrics task
Test the contact flow to trigger the event within Amazon Connect.
Confirm the test data is showing up within the Qualtrics event.
captured event data within Qualtrics
captured event data within Qualtrics
