Exporting & Importing Conjoint Designs (PX)

What's on This Page:

Was this helpful?

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

The feedback you submit here is used only to help improve this page.

That’s great! Thank you for your feedback!

Thank you for your feedback!

About Exporting & Importing Conjoint Designs

This feature is primarily for advanced users familiar with conducting conjoints on other platforms. This tool allows you to export a design file containing the explicit design of the conjoint, down to every available choice combination (and disregarding exclusions).

This page will explain how to read the conjoint design file and give parameters for the type of information that can be imported.

Qtip: This feature is not similar to the ability to import and export surveys.

Understanding the Export

This section explains what the different columns in a CSV/TSV export of a conjoint design mean.

question_set column

This column refers to the set of questions. This value will repeat row by row until you have reached the maximum number of questions for a set.

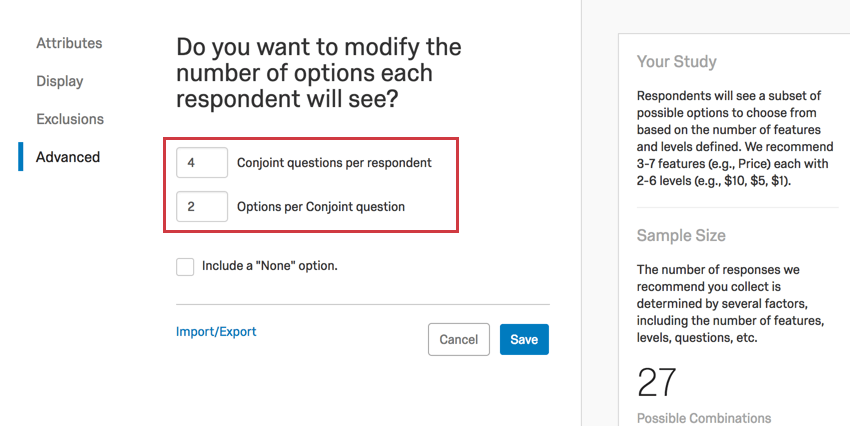

The choices and question numbers defined on the advanced tab when modifying attributes

Under Advanced in this example, the maximum number of questions is 4 and each question has two choices. As soon as each question has choice 1 and choice 2 defined, the question_set row’s value can change.

A CSV with the changing rows and ow they correspond to choices highlighted in red

question column

The question column identifies which question in the question set you are defining.

The choices and question numbers defined on the advanced tab when modifying attributes

Under Advanced in this example, the maximum number of questions is 4. So the question column can only ever have values from 1-4.

choice column

The choice column identifies which option in the question you are defining.

The choices and question numbers defined on the advanced tab when modifying attributes

Under Advanced in this example, the number of options per conjoint question is 2. So the question column can only ever have the value 1 or 2.

Feature columns

Each feature you have defined in Attributes will get its own column. You cannot use this CSV/TSV to add new features or remove these columns.

In our example, we have the following features with the following levels, defined on the page in this exact order:

  • Destination
    • Aruba (1)
    • Jamaica (2)
    • Bermuda (3)
  • Price
    • $1000 (1)
    • $2000 (2)
    • $5000 (3)
  • Duration
    • 3 days (1)
    • 1 week (2)
    • 2 weeks (3)

The “recode values” are listed in parentheses next to each level. These match the order of the levels as listed on the Attributes page and cannot be edited or defined by the user.

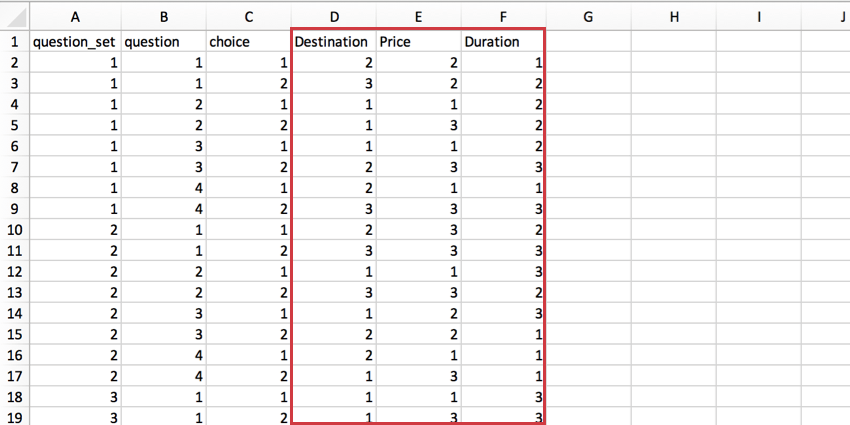

As you can see in the image below, each feature (Destination, Price, Duration) gets a column.

Aforementioned rows highlighted

Because each feature has only 3 levels, the maximum value in each column is 3. However, if you added another destination, you’d be able to have up to 4 in the Destination column, and still only 3 in Price or Duration.

Import Restrictions

When you make changes to your CSV/TSV file, it is unlikely that you will add or remove just one line at a time. There are rules you have to follow before the import will succeed.

  1. You must stay within the bounds of the features and levels defined on the Attributes page. You cannot define a new feature or ignore an existing feature during an import, and the level indexes used in the import file must be within the bounds of the number of levels defined for that feature on the Attributes page.
    Example: If your package only offers 3 prices, you cannot put a 4 in the Price column. In addition, you cannot erase the Price column altogether just because you suddenly don’t want to study this feature. To make edits like this, you must modify attributes in the product.
  2. You can change the number of questions and choices, but you must be consistent across the CSV/TSV provided. All versions must have the same number of questions, and all questions must have the same number of choices. They don’t need to match up with the numbers defined on the Advanced page.
  3. Exclusions are not checked in this CSV/TSV. They are also not configured using this CSV/TSV. To add exclusions, you must use the tool inside the product.

Importing and Exporting

Warning: If you import a new design, your conjoint will reset. This removes all previously collected data. You will not be able to retrieve this data after it is removed. Only make changes if you are totally sure you want to.
  1. Navigate to the Overview tab.

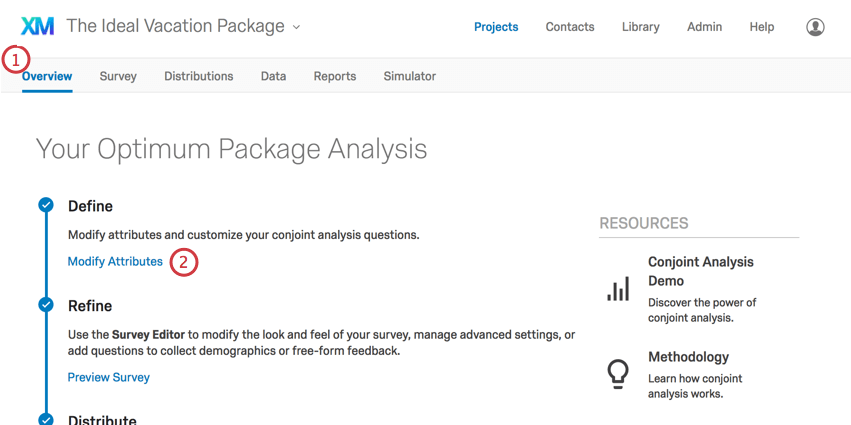

    Modify Attributes is the first bullet point inside the overview tab
  2. Click Modify Attributes.
  3. Go to Advanced.

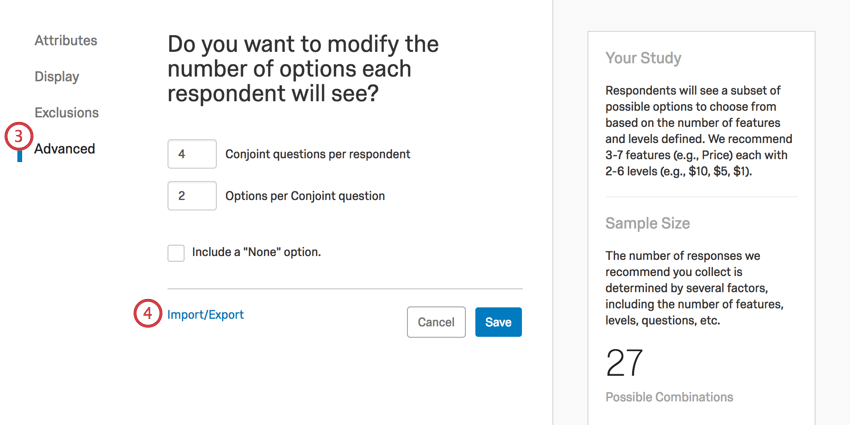

    Import Export is in blue at the bottom of the advanced settings
  4. Click Import/Export.
  5. Click Export Conjoint Design to export a design file, or click Import Conjoint Design to import one.

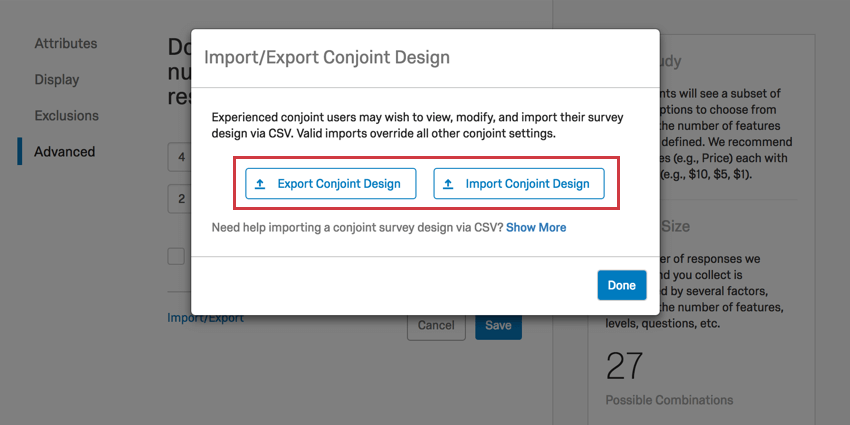

    The options listed are in blue text in the center of a new pop up window
