Attention: You are reading about a feature that is not currently available for all clients. If you’d like more information or to purchase access, talk to your Account Executive.

About Rolling Calculations

Rolling calculations are a means of applying a metric over a set of data points composed of multiple periods. Options include rolling averages and rolling metrics.

Rolling averages take a series of points, where those points can be the result of any sort of metric calculation, and averages them across a window of a specified size.

Example: Let’s say you have NPS data for the past 30 days. If you choose to get the rolling average of every three days, instead of getting the average for each of the 30 days, you can get the average of the NPS scores in a rolling window of 3 NPS scores broken out by days. Then, every three days of data collection, a new average of NPS scores would be generated for you.

Rolling metrics apply a chosen metric using all the data points within a specified window size. As opposed to rolling averages, it uses all the data to produce a new calculated metric.

Example: Let’s say you have NPS data for the past 30 days. If you choose the rolling metric of every three days, this rolling metric uses all the data in a rolling window of three days to produce a new NPS score. In this case, for every three days of data collection, a new NPS score would be generated for you.

You can add rolling averages and rolling metrics to dashboard widgets. However, first you should make sure the widget you’re using is compatible and that the data displayed is broken out by date.

Widget Compatibility

Rolling calculations can be added to any widget that allows you to add metrics, in addition to a dimension, row, or axis where the data can be broken out by date.

This includes:

Qtip: Date filters applied to the dashboard page will affect rolling calculations.

Adding a Date Breakout

Below is an example of a date breakout being added to a simple chart widget.

  1. Click to edit your widget.

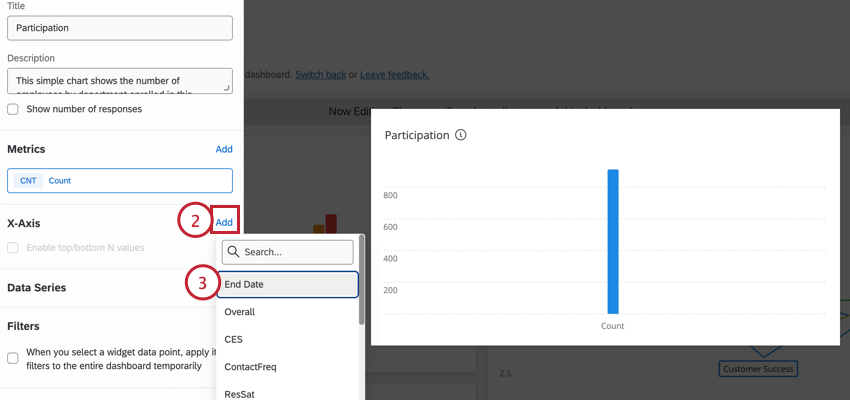

  2. On the widget editing pane to the right, click Set X Axis Dimension. From set x axis dimension, expanding a menu with date fields
  3. Choose one of the fields under the Date section.
    Qtip: If a field should be a date but isn’t listed in this section, try changing the Field Type.

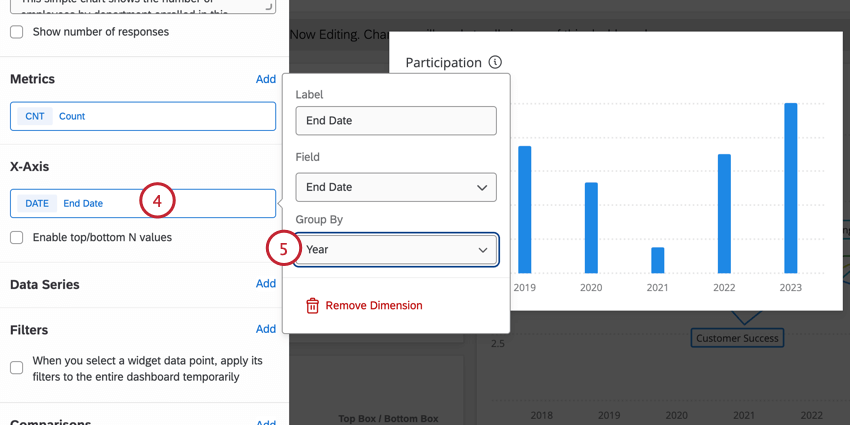

  4. Click the X Axis field.
  5. Choose the timeframe your data’s grouped by. You can go by year, quarter, month, week, day, or automatic.
Qtip: Rolling calculations are not available for the “sixth months” grouping. If you select “six months” as your date field’s grouping, you won’t be able to add a rolling calculation / any rolling calculations you’ve already added will be turned off.

Adding a Rolling Average or Rolling Metric to a Widget

  1. Use one of the compatible widgets and break the data out by date, as explained in the sections above.

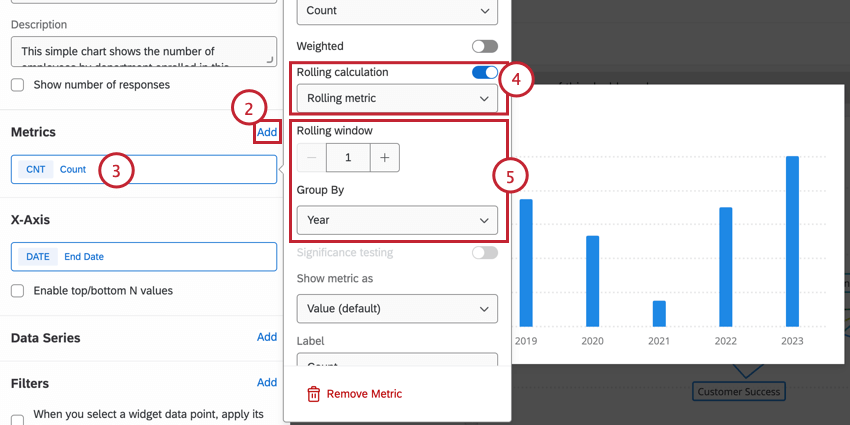

  2. Make sure you have at least one metric. If you have not added one yet, click Add Metric.
    Rolling Average is selected and settings appear

    Qtip: You can choose any metric you want, such as NPS or Average. The rolling calculation applied will be calculated based on this metric. However, rolling calculations are not compatible with custom metrics.
  3. Click the metric you added.
  4. Under the Rolling Calculations dropdown, select Rolling Average or Rolling Metric, depending on your preference.
  5. Select the period of time you want the rolling calculations over. You can type any value and choose between year, quarter, month, week, day, or automatic, if that’s what you set your date breakout to.
Qtip: This grouping must match the grouping for your date breakout. For example, if your date data is broken out over years, the rolling average will also automatically be set to years.

How Rolling Averages are Calculated

Rolling average is implemented on top of metrics that are allowed over Scalar Values (Numeric Values). The algorithm essentially implements this following set of equations. For Window Size `w`:

R to the power of W sub 0 is equal to X sub 0

Equation

Equation

Behavior for Current Data

The default behavior includes the current data point for the window, and uses the current value in the bucket for every data point.

Example: Let’s assume that we have a set of data points for a metric (count, sum, average, etc.). Then let’s say we use ‘average’ for this example, with window size ‘2’.

Date 1/1/2018 2/1/2018 3/1/2018 4/1/2018 5/1/2018 6/1/2018
Original Metric Calculated 10 6 11 2 9 14
Rolling Average (10) / 2

= 5



(10 + 6) / 2

= 8

(6 + 11) / 2

= 8.5

(11 + 2) / 2

= 6.5

(2 + 9) / 2

= 5.5

(9 + 14) / 2

= 11.5



  • The last data point is considered as incomplete and will contribute to the rolling average computations when we have a data point for 7/1/2018.

Rolling Average Behavior for sparse data

The data represented above is a defined behavior as per the equations mentioned in the graph. But in a real world scenario, the data is usually sparse. These cases are called the ‘missing data points’ or ‘null case’. In this case, only average over the window elements exist. If the elements in the window are missing, then Rolling Averages won’t use the previous data points to fill in the window.

Example:

Date 1/1/2018 2/1/2018 3/1/2018 4/1/2018 5/1/2018 6/1/2018
Original Metric Calculated 10 MISSING 11 MISSING MISSING 14
Rolling Average (10) / 2
= 5
(10 + Null) / 1
= 10
(NULL + 11) / 1
= 11
(11 + NULL) / 1
= 11
(NULL + NULL)
= NULL
(NULL + 14) / 1
= 14

How Rolling Metrics are calculated

Rolling metrics work in the same way that normal metrics work, except the data used can be expanded past one period, on a rolling basis. The default behavior includes the current data point for the window which uses the current value in the bucket for every data point.

Example: Let’s assume that we have a set of data points for a metric (count, sum, average, etc.). Then let’s say we use ‘average’ for this example, with window size ‘2’.

Date 1/1/2018 2/1/2018 3/1/2018 4/1/2018 5/1/2018 6/1/2018
Original number of data points 12 17 20 10 15 25
Sum of values 36 52 78 62 55 89
Rolling Metric 36 / 12 = 3 (36 + 52) / (12 + 17) = 3.03 (52 + 78) / (17 + 20) = 3.51 (78 + 62) / (20 + 10) = 4.67 (62 + 55) / (10 + 15) = 4.68 (55 + 89) / (15 + 25) = 3.6
  • Each following data point gets the average of the sums using the number of data points within the window size of two.

Rolling Metric BEHAVIOR FOR SPARSE DATA

The data represented above is a defined behavior as per the equations mentioned in the graph. But in a real world scenario, the data is usually sparse. These cases are called the ‘missing data points’ or ‘null case’. In this case, the metric is still calculated using the number of data points available within that window.
