About Comparison Widgets

The Comparison widget allows users to compare across demographic or hierarchy fields. With this widget, users determine questions or categories to be broken out by a hierarchy or participant metadata. Dashboard viewers are then allowed to switch between selected questions and categories. This is useful if you want to compare units of the company on their engagement scores, or if you want to see a breakout of the ratings given by different units of the company.

Rather than being based off of average or overall score, the Distribution column of a Comparison widget is calculated based off of the Scale settings. Each color of the scale indicates a different level of favorability, with the percentage on the far left in green indicating the percentage of participants who gave the item a high favorability rating.

Qtip: Unsure which Employee Experience projects have this widget? See our Widget Types and Project Compatibility table.
Attention: The hierarchy options are only available in Engagement projects, because those are the only projects compatible with hierarchies.
Attention: The Comparison widget has nothing to do with the comparisons that can be added to other widgets.

Field Type Compatibility

The Comparison widget has two different fields you can fill out, and each is compatible with different field types.

Items can be either categories, or questions saved as Number Set.

Break out by can be questions or metadata saved asText Set, Multi-Answer Text Set, or Number Set.

Widget Customization

For basic widget instructions and customization, visit the Widgets Overview support page. Continue reading for widget-specific customization.

The Comparison widget provides you with a number of unique customization options:

Comparison widget with widget editing pane open to the left

  1. Source: Choose the Employee Experience project to pull data from. By default, there will be only one source, but you can add additional surveys to your list of surveys inside the Dashboard Data. You can select multiple sources at a time.
  2. Decimal Places: Choose how many decimal places display on the percentages in the green portion of the scale.
  3. Items: Choose the survey questions or categories you want to display the data for. You can choose multiple items at a time. Dashboard viewers can switch between these items using the Item dropdown menu.
    Dropdown menu on top-left of the Comparison Widget that lets you toggle between Items
  4. Default Selected Item: The item displayed by default.
  5. Breakouts: Choose metadata, survey questions, or an org hierarchy to break out results. For example, in the screenshot above, a rating of company pride is broken out by units of a Parent-Child hierarchy.

Display Options

Zoom-in on the Display Options in the editing pane

  • Show Response Counts: Show the number of responses for each level of the breakout.
  • Show Mean: Show the mean rating provided for each level of the breakout.
  • Disable Column Sorting: Disable the ability for dashboard viewers to click column headers and sort the widget data in a different order.
  • Show All Percents: When selected, this option allows you to not just show the percentage of the positively engaged group, but the neutral and negative groups.

Percentiles

The comparison widget also has a mode where it can display percentiles. Percentiles are a means of displaying performance by comparing a score against 100 ranks, with 100 being the highest possible rank.

image of a percentile comparison widget. the bars are black and the scores shown are the percentile rank for each department

In order to use the percentile version of a comparison widget, you need to create a custom percentile benchmark where scores are presented as averages. Other types of percentile benchmarks are not compatible with the widget.

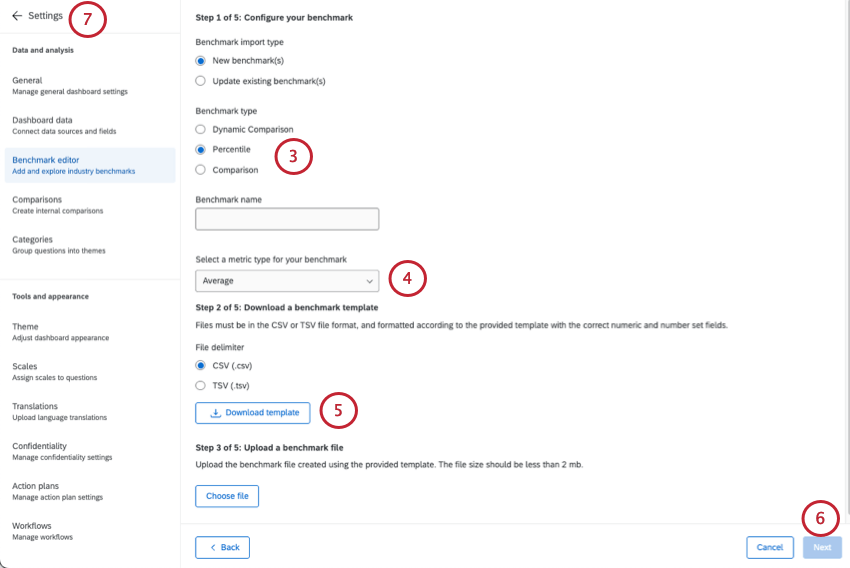

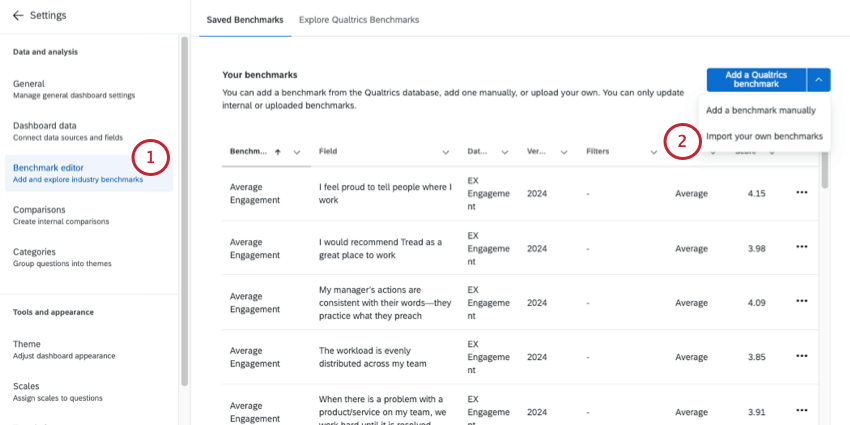

  1. Go to the dashboard benchmark editor.
    benchmark editor
  2. Choose to import your own benchmarks.
  3. Set benchmark type to Percentile.
    setting up an average percentile benchmark so its works with a comparison widget
  4. Set the metric type to Average.
  5. Export an example file in CSV or TSV.
    Qtip: Remember: you don’t need to create a benchmark for every question, and thus can delete entire columns. However, once you decide to make a benchmark for a question, you must include an average score every percentile, from 1-100, filling out every row.
    Qtip: For more on uploading benchmarks, see Benchmark Editor (EX).
  6. Complete and save your benchmark.
  7. Go back to your dashboard.

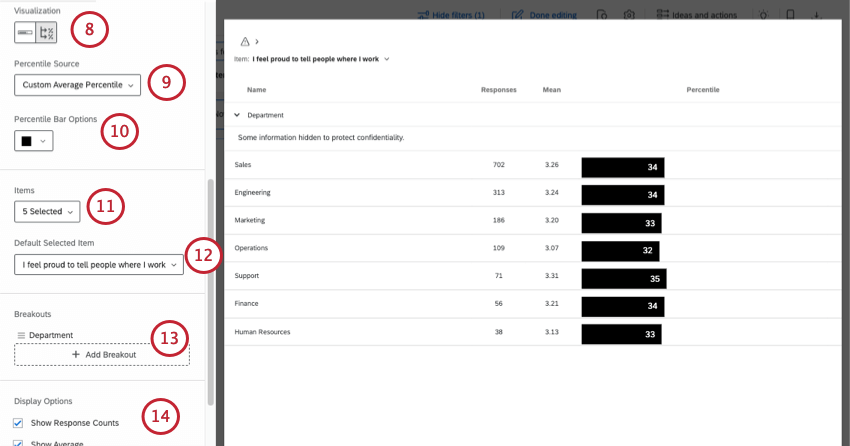

  8. Create a comparison widget and set Visualization to Percentile.
    setting up a comparison percentile widget so it shows data
  9. Under Percentile Score, select the average percentile benchmark you just made.
  10. For Percentile Bar Options, change the color as desired.
  11. Under Items, select the questions you’d like to display in the widget.
    Qtip: Select the same questions you created benchmarks for.
    Attention: Although they appear in the list, this widget is not compatible with categories, even if all items within have percentiles defined. This is due to the fact percentiles can vary between items in the category.
  12. The Default Selected Item is the question percentile you want displayed by default.
  13. Under Breakouts, break out scores by metadata.
    Example: In these screenshots, we’ve broken out performance by department. Once the widget is complete, we’ll see the percentile each department’s average score falls into.
  14. Adjust other display options as needed.
